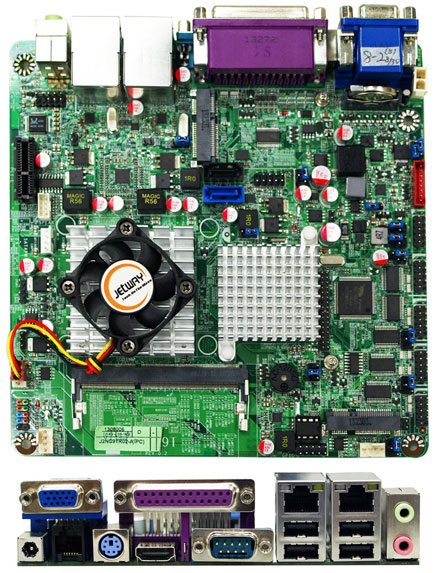

Jetway NC9T-1037 (Intel NM70)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway NC9T-1037 (Intel NM70)

  • INTEL® Celeron 1037U Processor + NM70 Chipset
  • Support 1 * DDR3 1600/1333MHz Single CH up to 8GB
  • Support 1 * Serial ATAII (3Gb/s) & 1 * Serial ATAIII (6Gb/s) Devices
  • Integrated Realtek ALC662 HD Audio CODEC with 2-CH
  • 1 * 24 bits Dual Channel LVDS header
  • Supports 2 * Realtek RT8111F Gigabit LAN
  • Support 6 * COM ports (COM1 support RS232/422/485)
  • 6 * COM support +5V/+12V
  • Support Watch dog Technology
  • Provides AT mode power
  • Support CPU Smart FAN
  • Compliance with ErP standard
  • Mini-ITX Form Factor (170mm x 170mm)


Share

RAM :

SSD (mSATA):

Build/Install:
CPU INTEL® Celeron 1037U Dual Core Processor (1.8GHz)
Chipset INTEL®NM70 Express chipset
Memory 1 * DDR3 1600/1333MHz Single CH SO-DIMM up to 8GB
Expansion Slots 1 * PCI –E x 1 slot 1 * half size Mini PCI-E socket
Storage 1 * Serial ATA2 3Gb/s & 1 * Aerial ATA3 6Gb/s connectors 1 * full size mSATA socket
Audio Realtek ALC662 6-Channel HD Audio
Ethernet LAN 2 * RTL8111F PCI-E Gigabit LAN
LVDS Onboard 1 * 24-bits Dual channel connector
USB Embedded 6 * USB 2.0/1.1
Special Features Support ACPI S3 Support CPU Smart FAN Support Watch Dog
Rear Panel I/O 4 * USB 2.0/1.1 ports 2 * RJ-45 ports 2 * Audio I/O ports ( MIC and Line-out ) 1 * VGA port 1 * Parallel port 1 * HDMI port 1 * COM port (COM1 for RS232/422/485) 1 * PS/2 1 * RJ-11 port 1 * 12V DC in jack
Internal I/O 1 * USB 2.0/1.1 headers for 2 USB 2.0 ports 2 * NB / Chassis Fan connectors 5 * COM headers 1 * LVDS headers /1 * Inverter headers 1 * AUDIO header 1 * Chassis Intrusion
BIOS AMI 32MB UEFI DIP Flash ROM
Functional POS Machine
Packing Color Box Dimension：200(W) x 200(D) x 70(H)mm
Certificate CE, FCC, RoHS
Temperature Operating within 0~40 centigrade Storage within -20-85 centigrade
Form Factor Mini ITX Form Factor(17cmx17cm)
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
