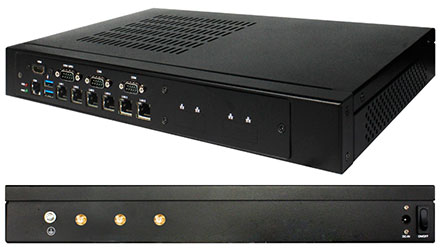

Jetway HBJC141F692W-33G4 (Intel Apollo Lake, 10x LAN)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway HBJC141F692W-33G4 (Intel Apollo Lake, 10x LAN)

  • Intel® Apollo Lake N3350/N4200 Processor
  • 1 * SO-DIMM Dual CH DDR3L up to 8GB
  • 2 * USB3.0, 6 * RJ45, 1 * RS232(RJ45 TYPE)
  • M/B Form Factor : Mini ITX (170x170mm)
  • 1U FLEX POWER_200W


Share

RAM :

SSD (mSATA):

OS:

Build/Install:
MB Model – JNF692G6-335 / JNF692G6-420 (Mini-ITX)
– JNF692G6-335B1 / JNF692G6-420B1 (Mini-ITX /1 pair support Bypass LAN)
Part No Standard WIFI Bypass LAN Expansion 4 ports LAN PCI-E Card Bypass LAN+ Expansion 4 ports LAN PCI-E Card
– HBJC141F692-335B
– HBJC141F692-420B 		– HBJC141F692W-335B
– HBJC141F692W-420B 		– HBJC141F692B-335B
– HBJC141F692B-420B 		– HBJC141F692-33G4
– HBJC141F692-42G4 		– HBJC141F692B-33G4
– HBJC141F692B-42G4
BIOS – AMI 128MB SMT Flash ROM
CPU/Chipset – INTEL® Apollo Lake N3350/N4200 Processor
Memory – 1 * SO-DIMM slots DDR3L-1866MHz up to 8GB
Storage – 1 * 2.5” SATA3 6Gb/s internal drive bay
– 1 * Full-size mSATA/mini-PCI Express shared slot
Network – 6 * Intel i211AT Gigabit LAN
– 1 * Full-size mini-PCIE slot (802.11 b/g/n + BT 4.0 installed in WIFI model)
Rear Panel I/O – 1 * Power SWITCH
– DC JACK
Front Panel I/O – 6 * RJ45
– 2 * USB3.0
– 1 * RS232 (RJ45 TYPE)
– 1 * PW LED, 1 * Alarm LED
– 1 * HDMI (Not assembled when shipped, wire placed in the parts box)
– 1 * GPIO (Not assembled when shipped, wire placed in the parts box)
– 2 * COM (optional)
Power Source – AC 90~240V input_DC12V-5A-60W out / FSP Adapter
Compliance – CE, FCC, RoHS
Temperature – Operating Temperature: 0 ~ 40° C
– Storage Temperature: -10 ~ 70° C
Dimensions – 330 (W) x 192 (D) x 44 (H) mm
Packing – Net Weight: 1.6KG
– Gross Weight: 2.6KG
– Color Box dimension: 406 (W) * 148 (D) * 380 (H) mm
OS Support – Windows 10, Linux
Warranty – 2 Year limited warranty
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
